Redis（七）：set/sadd/sismember/sinter/sdiffstore 命令源碼解析

// 1. inset 數據結構，在set數據量小且都是整型數據時使用typedef struct intset {    // 編碼范圍，由具體存儲值決定    uint32_t encoding;    // 數組長度    uint32_t length;    // 具體存儲元素的容器    int8_t contents[];} intset;
// 2. dict 相關數據結構，即是 hash 的實現相關的數據結構/* This is our hash table structure. Every dictionary has two of this as we * implement incremental rehashing, for the old to the new table. */typedef struct dictht {    dictEntry **table;    unsigned long size;    unsigned long sizemask;    unsigned long used;} dictht;
typedef struct dict {    dictType *type;    void *privdata;    dictht ht[2];    long rehashidx; /* rehashing not in progress if rehashidx == -1 */    unsigned long iterators; /* number of iterators currently running */} dict;
/* If safe is set to 1 this is a safe iterator, that means, you can call * dictAdd, dictFind, and other functions against the dictionary even while * iterating. Otherwise it is a non safe iterator, and only dictNext() * should be called while iterating. */typedef struct dictIterator {    dict *d;    long index;    int table, safe;    dictEntry *entry, *nextEntry;    /* unsafe iterator fingerprint for misuse detection. */    long long fingerprint;} dictIterator;
typedef struct dictEntry {    void *key;    union {        void *val;        uint64_t u64;        int64_t s64;        double d;    } v;    struct dictEntry *next;} dictEntry;
typedef struct dictType {    unsigned int (*hashFunction)(const void *key);    void *(*keyDup)(void *privdata, const void *key);    void *(*valDup)(void *privdata, const void *obj);    int (*keyCompare)(void *privdata, const void *key1, const void *key2);    void (*keyDestructor)(void *privdata, void *key);    void (*valDestructor)(void *privdata, void *obj);} dictType;

    {"sadd",saddCommand,-3,"wmF",0,NULL,1,1,1,0,0},    {"srem",sremCommand,-3,"wF",0,NULL,1,1,1,0,0},    {"smove",smoveCommand,4,"wF",0,NULL,1,2,1,0,0},    {"sismember",sismemberCommand,3,"rF",0,NULL,1,1,1,0,0},    {"scard",scardCommand,2,"rF",0,NULL,1,1,1,0,0},    {"spop",spopCommand,-2,"wRsF",0,NULL,1,1,1,0,0},    {"srandmember",srandmemberCommand,-2,"rR",0,NULL,1,1,1,0,0},    {"sinter",sinterCommand,-2,"rS",0,NULL,1,-1,1,0,0},    {"sinterstore",sinterstoreCommand,-3,"wm",0,NULL,1,-1,1,0,0},    {"sunion",sunionCommand,-2,"rS",0,NULL,1,-1,1,0,0},    {"sunionstore",sunionstoreCommand,-3,"wm",0,NULL,1,-1,1,0,0},    {"sdiff",sdiffCommand,-2,"rS",0,NULL,1,-1,1,0,0},    {"sdiffstore",sdiffstoreCommand,-3,"wm",0,NULL,1,-1,1,0,0},    {"smembers",sinterCommand,2,"rS",0,NULL,1,1,1,0,0},    {"sscan",sscanCommand,-3,"rR",0,NULL,1,1,1,0,0},

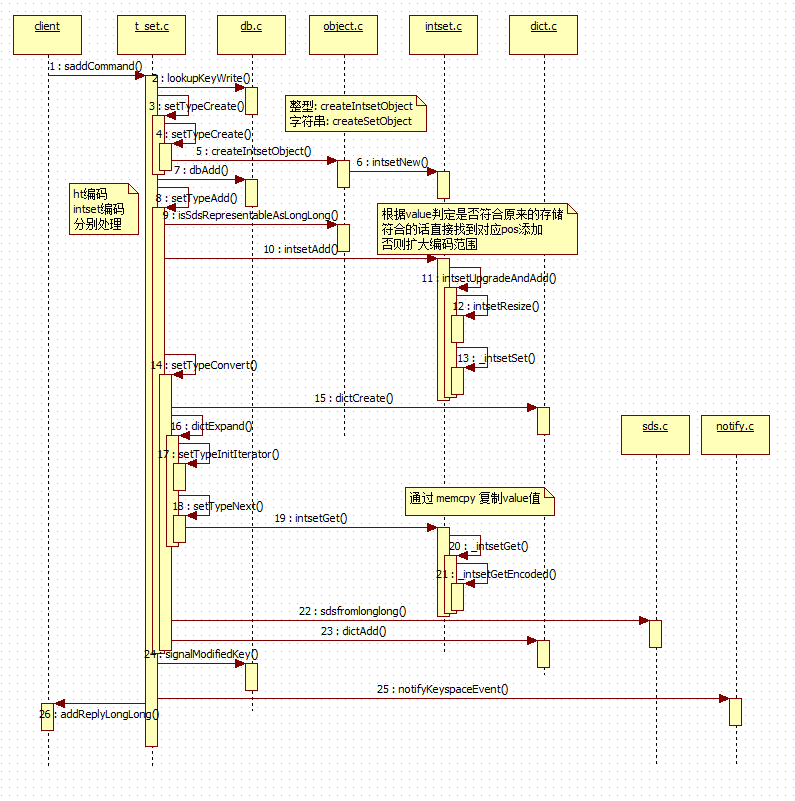

// 用法: SADD key member1 [member2]// t_set.c, 添加membervoid saddCommand(client *c) {    robj *set;    int j, added = 0;    // 先從當前db中查找set實例    set = lookupKeyWrite(c->db,c->argv[1]);    if (set == NULL) {        // 1. 新建set實例并添加到當前db中        set = setTypeCreate(c->argv[2]->ptr);        dbAdd(c->db,c->argv[1],set);    } else {        if (set->type != OBJ_SET) {            addReply(c,shared.wrongtypeerr);            return;        }    }    // 對于n個member，一個個地添加即可    for (j = 2; j < c->argc; j++) {        // 2. 只有添加成功, added 才會加1        if (setTypeAdd(set,c->argv[j]->ptr)) added++;    }    // 命令傳播    if (added) {        signalModifiedKey(c->db,c->argv[1]);        notifyKeyspaceEvent(NOTIFY_SET,"sadd",c->argv[1],c->db->id);    }    server.dirty += added;    // 響應添加成功的數量    addReplyLongLong(c,added);}
// 1. 創建新的set集合實例（需根據首次的參數類型判定）// t_set.c, 創建set實例/* Factory method to return a set that *can* hold "value". When the object has * an integer-encodable value, an intset will be returned. Otherwise a regular * hash table. */robj *setTypeCreate(sds value) {    // 如果傳入的value是整型，則創建 intset 類型的set    // 否則使用dict類型的set    // 一般地，第一個數據為整型，后續數據也應該為整型，所以這個數據結構相對穩定    // 而hash的容器創建時，只使用了一 ziplist 創建，這是不一樣的實現    if (isSdsRepresentableAsLongLong(value,NULL) == C_OK)        return createIntsetObject();    return createSetObject();}
// 1.1. 創建 intset 型的set// object.c robj *createIntsetObject(void) {    intset *is = intsetNew();    robj *o = createObject(OBJ_SET,is);    o->encoding = OBJ_ENCODING_INTSET;    return o;}// intset.c, new一個空的intset對象/* Create an empty intset. */intset *intsetNew(void) {    intset *is = zmalloc(sizeof(intset));    is->encoding = intrev32ifbe(INTSET_ENC_INT16);    is->length = 0;    return is;}
// 1.2. 創建dict 型的setrobj *createSetObject(void) {    dict *d = dictCreate(&setDictType,NULL);    robj *o = createObject(OBJ_SET,d);    o->encoding = OBJ_ENCODING_HT;    return o;}// dict.c/* Create a new hash table */dict *dictCreate(dictType *type,        void *privDataPtr){    dict *d = zmalloc(sizeof(*d));
    _dictInit(d,type,privDataPtr);    return d;}/* Initialize the hash table */int _dictInit(dict *d, dictType *type,        void *privDataPtr){    _dictReset(&d->ht[0]);    _dictReset(&d->ht[1]);    d->type = type;    d->privdata = privDataPtr;    d->rehashidx = -1;    d->iterators = 0;    return DICT_OK;}
// 2. 添加member到set集合中// t_set.c, 添加元素/* Add the specified value into a set. * * If the value was already member of the set, nothing is done and 0 is * returned, otherwise the new element is added and 1 is returned. */int setTypeAdd(robj *subject, sds value) {    long long llval;    // 2.1. HT編碼和INTSET編碼分別處理就好    if (subject->encoding == OBJ_ENCODING_HT) {        dict *ht = subject->ptr;        // 以 value 為 key, 添加實例到ht中        // 實現過程也很簡單，大概就是如果存在則返回NULL（即無需添加），輔助rehash，分配內存創建dictEntry實例，稍后簡單看看        dictEntry *de = dictAddRaw(ht,value);        if (de) {            // 重新設置key為 sdsdup(value), value為NULL            dictSetKey(ht,de,sdsdup(value));            dictSetVal(ht,de,NULL);            return 1;        }    }     // 2.2. intset 編碼的member添加    else if (subject->encoding == OBJ_ENCODING_INTSET) {        // 嘗試解析value為 long 型，值寫入 llval 中        if (isSdsRepresentableAsLongLong(value,&llval) == C_OK) {            uint8_t success = 0;            // 情況1. 可添加到intset中            subject->ptr = intsetAdd(subject->ptr,llval,&success);            if (success) {                /* Convert to regular set when the intset contains                 * too many entries. */                // 默認: 512, intset大于之后，則轉換為ht hash表模式存儲                 if (intsetLen(subject->ptr) > server.set_max_intset_entries)                    // 2.3. 轉換intset編碼為 ht 編碼                    setTypeConvert(subject,OBJ_ENCODING_HT);                return 1;            }        } else {            // 情況2. member 是字符串型，先將set容器轉換為 ht 編碼，再重新執行dict的添加模式            /* Failed to get integer from object, convert to regular set. */            setTypeConvert(subject,OBJ_ENCODING_HT);
            /* The set *was* an intset and this value is not integer             * encodable, so dictAdd should always work. */            serverAssert(dictAdd(subject->ptr,sdsdup(value),NULL) == DICT_OK);            return 1;        }    } else {        serverPanic("Unknown set encoding");    }    return 0;}// 2.1. 添加member到dict中（略解, 在hash數據結構解析中已介紹）// dict.c, 添加某key到 d 字典中/* Low level add. This function adds the entry but instead of setting * a value returns the dictEntry structure to the user, that will make * sure to fill the value field as he wishes. * * This function is also directly exposed to the user API to be called * mainly in order to store non-pointers inside the hash value, example: * * entry = dictAddRaw(dict,mykey); * if (entry != NULL) dictSetSignedIntegerVal(entry,1000); * * Return values: * * If key already exists NULL is returned. * If key was added, the hash entry is returned to be manipulated by the caller. */dictEntry *dictAddRaw(dict *d, void *key){    int index;    dictEntry *entry;    dictht *ht;
    if (dictIsRehashing(d)) _dictRehashStep(d);
    /* Get the index of the new element, or -1 if     * the element already exists. */    // 獲取需要添加的key的存放位置下標(slot), 如果該key已存在, 則返回-1(無可用slot)    if ((index = _dictKeyIndex(d, key)) == -1)        return NULL;
    /* Allocate the memory and store the new entry.     * Insert the element in top, with the assumption that in a database     * system it is more likely that recently added entries are accessed     * more frequently. */    ht = dictIsRehashing(d) ? &d->ht[1] : &d->ht[0];    entry = zmalloc(sizeof(*entry));    entry->next = ht->table[index];    ht->table[index] = entry;    ht->used++;
    /* Set the hash entry fields. */    dictSetKey(d, entry, key);    return entry;}
// 2.2. 添加整型數據到 intset中// intset.c, 添加value/* Insert an integer in the intset */intset *intsetAdd(intset *is, int64_t value, uint8_t *success) {    // 獲取value的所屬范圍    uint8_t valenc = _intsetValueEncoding(value);    uint32_t pos;    if (success) *success = 1;
    /* Upgrade encoding if necessary. If we need to upgrade, we know that     * this value should be either appended (if > 0) or prepended (if < 0),     * because it lies outside the range of existing values. */    // 默認 is->encoding 為 INTSET_ENC_INT16 (16位長)    // 2.2.1. 即超過當前預設的位長，則需要增大預設，然后添加    // 此時的value可以確定: 要么是最大，要么是最小 （所以我們可以推斷，此intset應該是有序的）    if (valenc > intrev32ifbe(is->encoding)) {        /* This always succeeds, so we don't need to curry *success. */        return intsetUpgradeAndAdd(is,value);    } else {        /* Abort if the value is already present in the set.         * This call will populate "pos" with the right position to insert         * the value when it cannot be found. */        // 2.2.2. 在當前環境下添加value        // 找到value則說明元素已存在，不可再添加        // pos 保存比value小的第1個元素的位置        if (intsetSearch(is,value,&pos)) {            if (success) *success = 0;            return is;        }
        is = intsetResize(is,intrev32ifbe(is->length)+1);        // 在pos不是末尾位置時，需要留出空位，依次移動后面的元素        if (pos < intrev32ifbe(is->length)) intsetMoveTail(is,pos,pos+1);    }    // 針對編碼位不變更的情況下設置pos位置的值    _intsetSet(is,pos,value);    is->length = intrev32ifbe(intrev32ifbe(is->length)+1);    return is;}// 判斷 value 的位長// INTSET_ENC_INT16 < INTSET_ENC_INT32 < INTSET_ENC_INT64// 2 < 4 < 8/* Return the required encoding for the provided value. */static uint8_t _intsetValueEncoding(int64_t v) {    if (v < INT32_MIN || v > INT32_MAX)        return INTSET_ENC_INT64;    else if (v < INT16_MIN || v > INT16_MAX)        return INTSET_ENC_INT32;    else        return INTSET_ENC_INT16;}
// 2.2.1. 升級預設位長，并添加value// intset.c/* Upgrades the intset to a larger encoding and inserts the given integer. */static intset *intsetUpgradeAndAdd(intset *is, int64_t value) {    uint8_t curenc = intrev32ifbe(is->encoding);    uint8_t newenc = _intsetValueEncoding(value);    int length = intrev32ifbe(is->length);    int prepend = value < 0 ? 1 : 0;
    /* First set new encoding and resize */    is->encoding = intrev32ifbe(newenc);    // 每次必進行擴容    is = intsetResize(is,intrev32ifbe(is->length)+1);
    /* Upgrade back-to-front so we don't overwrite values.     * Note that the "prepend" variable is used to make sure we have an empty     * space at either the beginning or the end of the intset. */    // 因編碼發生變化，元素的位置已經不能一一對應，需要按照原來的編碼依次轉移過來    // 從后往前依次賦值，所以，內存位置上不存在覆蓋問題（后面內存位置一定是空的），直接依次賦值即可（高效復制）    while(length--)        _intsetSet(is,length+prepend,_intsetGetEncoded(is,length,curenc));
    /* Set the value at the beginning or the end. */    // 對新增加的元素，負數添加到第0位，否則添加到最后一個元素后一位    if (prepend)        _intsetSet(is,0,value);    else        _intsetSet(is,intrev32ifbe(is->length),value);    is->length = intrev32ifbe(intrev32ifbe(is->length)+1);    return is;}/* Resize the intset */static intset *intsetResize(intset *is, uint32_t len) {    uint32_t size = len*intrev32ifbe(is->encoding);    // malloc    is = zrealloc(is,sizeof(intset)+size);    return is;}// intset.c, 獲取pos位置的值/* Return the value at pos, given an encoding. */static int64_t _intsetGetEncoded(intset *is, int pos, uint8_t enc) {    int64_t v64;    int32_t v32;    int16_t v16;
    if (enc == INTSET_ENC_INT64) {        memcpy(&v64,((int64_t*)is->contents)+pos,sizeof(v64));        memrev64ifbe(&v64);        return v64;    } else if (enc == INTSET_ENC_INT32) {        memcpy(&v32,((int32_t*)is->contents)+pos,sizeof(v32));        memrev32ifbe(&v32);        return v32;    } else {        memcpy(&v16,((int16_t*)is->contents)+pos,sizeof(v16));        memrev16ifbe(&v16);        return v16;    }}// intset.c, 設置pos位置的值，和數組賦值的實際意義差不多// 只是這里數據類型是不確定的，所以使用指針進行賦值/* Set the value at pos, using the configured encoding. */static void _intsetSet(intset *is, int pos, int64_t value) {    uint32_t encoding = intrev32ifbe(is->encoding);    if (encoding == INTSET_ENC_INT64) {        ((int64_t*)is->contents)[pos] = value;        memrev64ifbe(((int64_t*)is->contents)+pos);    } else if (encoding == INTSET_ENC_INT32) {        ((int32_t*)is->contents)[pos] = value;        memrev32ifbe(((int32_t*)is->contents)+pos);    } else {        ((int16_t*)is->contents)[pos] = value;        memrev16ifbe(((int16_t*)is->contents)+pos);    }}
// 2.2.2. 在編碼類型未變更的情況，需要查找可以存放value的位置（為了確認該value是否已存在，以及小于value的第一個位置賦值）/* Search for the position of "value". Return 1 when the value was found and * sets "pos" to the position of the value within the intset. Return 0 when * the value is not present in the intset and sets "pos" to the position * where "value" can be inserted. */static uint8_t intsetSearch(intset *is, int64_t value, uint32_t *pos) {    int min = 0, max = intrev32ifbe(is->length)-1, mid = -1;    int64_t cur = -1;
    /* The value can never be found when the set is empty */    if (intrev32ifbe(is->length) == 0) {        if (pos) *pos = 0;        return 0;    } else {        /* Check for the case where we know we cannot find the value,         * but do know the insert position. */        // 因 intset 是有序數組，即可以判定是否超出范圍，如果超出則元素必定不存在        if (value > _intsetGet(is,intrev32ifbe(is->length)-1)) {            if (pos) *pos = intrev32ifbe(is->length);            return 0;        } else if (value < _intsetGet(is,0)) {            if (pos) *pos = 0;            return 0;        }    }    // 使用二分查找    while(max >= min) {        mid = ((unsigned int)min + (unsigned int)max) >> 1;        cur = _intsetGet(is,mid);        if (value > cur) {            min = mid+1;        } else if (value < cur) {            max = mid-1;        } else {            // 找到了            break;        }    }
    if (value == cur) {        if (pos) *pos = mid;        return 1;    } else {        // 在沒有找到的情況下，min就是第一個比 value 小的元素        if (pos) *pos = min;        return 0;    }}// intset移動(內存移動)static void intsetMoveTail(intset *is, uint32_t from, uint32_t to) {    void *src, *dst;    uint32_t bytes = intrev32ifbe(is->length)-from;    uint32_t encoding = intrev32ifbe(is->encoding);
    if (encoding == INTSET_ENC_INT64) {        src = (int64_t*)is->contents+from;        dst = (int64_t*)is->contents+to;        bytes *= sizeof(int64_t);    } else if (encoding == INTSET_ENC_INT32) {        src = (int32_t*)is->contents+from;        dst = (int32_t*)is->contents+to;        bytes *= sizeof(int32_t);    } else {        src = (int16_t*)is->contents+from;        dst = (int16_t*)is->contents+to;        bytes *= sizeof(int16_t);    }    memmove(dst,src,bytes);}
// 2.3. 轉換intset編碼為 ht 編碼 (如果遇到string型的value或者intset數量大于閥值(默認:512)時)// t_set.c, 類型轉換/* Convert the set to specified encoding. The resulting dict (when converting * to a hash table) is presized to hold the number of elements in the original * set. */void setTypeConvert(robj *setobj, int enc) {    setTypeIterator *si;    // 要求外部必須保證 set類型且 intset 編碼    serverAssertWithInfo(NULL,setobj,setobj->type == OBJ_SET &&                             setobj->encoding == OBJ_ENCODING_INTSET);
    if (enc == OBJ_ENCODING_HT) {        int64_t intele;        // 直接創建一個 dict 來容納數據        dict *d = dictCreate(&setDictType,NULL);        sds element;
        /* Presize the dict to avoid rehashing */        // 直接一次性擴容成需要的大小        dictExpand(d,intsetLen(setobj->ptr));
        /* To add the elements we extract integers and create redis objects */        // setTypeIterator 迭代器是轉換的關鍵         si = setTypeInitIterator(setobj);        while (setTypeNext(si,&element,&intele) != -1) {            // element:ht編碼時的key, intele: intset編碼時的value            element = sdsfromlonglong(intele);            // 因set特性保證是無重復元素，所以添加dict時，必然應成功            // 此處應無 rehash, 而是直接計算 hashCode, 放置元素, 時間復雜度 O(1)            serverAssert(dictAdd(d,element,NULL) == DICT_OK);        }        // 釋放迭代器        setTypeReleaseIterator(si);
        setobj->encoding = OBJ_ENCODING_HT;        zfree(setobj->ptr);        setobj->ptr = d;    } else {        serverPanic("Unsupported set conversion");    }}// t_set.c, 獲取set集合的迭代器setTypeIterator *setTypeInitIterator(robj *subject) {    setTypeIterator *si = zmalloc(sizeof(setTypeIterator));    // 設置迭代器公用信息    si->subject = subject;    si->encoding = subject->encoding;    // hash表則需要再迭代 dict    if (si->encoding == OBJ_ENCODING_HT) {        si->di = dictGetIterator(subject->ptr);    }    // intset 比較簡單，直接設置下標即可    else if (si->encoding == OBJ_ENCODING_INTSET) {        si->ii = 0;    } else {        serverPanic("Unknown set encoding");    }    return si;}// dict.c, dict迭代器初始化dictIterator *dictGetIterator(dict *d){    dictIterator *iter = zmalloc(sizeof(*iter));
    iter->d = d;    iter->table = 0;    iter->index = -1;    iter->safe = 0;    iter->entry = NULL;    iter->nextEntry = NULL;    return iter;}// t_set.c, /* Move to the next entry in the set. Returns the object at the current * position. * * Since set elements can be internally be stored as SDS strings or * simple arrays of integers, setTypeNext returns the encoding of the * set object you are iterating, and will populate the appropriate pointer * (sdsele) or (llele) accordingly. * * Note that both the sdsele and llele pointers should be passed and cannot * be NULL since the function will try to defensively populate the non * used field with values which are easy to trap if misused. * * When there are no longer elements -1 is returned. */int setTypeNext(setTypeIterator *si, sds *sdsele, int64_t *llele) {    // hash表返回key    if (si->encoding == OBJ_ENCODING_HT) {        dictEntry *de = dictNext(si->di);        if (de == NULL) return -1;        *sdsele = dictGetKey(de);        *llele = -123456789; /* Not needed. Defensive. */    }    // intset 直接獲取下標對應的元素即可    else if (si->encoding == OBJ_ENCODING_INTSET) {        if (!intsetGet(si->subject->ptr,si->ii++,llele))            return -1;        *sdsele = NULL; /* Not needed. Defensive. */    } else {        serverPanic("Wrong set encoding in setTypeNext");    }    return si->encoding;}// case1: intset直接疊加下標即可// intset.c/* Sets the value to the value at the given position. When this position is * out of range the function returns 0, when in range it returns 1. */uint8_t intsetGet(intset *is, uint32_t pos, int64_t *value) {    if (pos < intrev32ifbe(is->length)) {        *value = _intsetGet(is,pos);        return 1;    }    return 0;}/* Return the value at pos, using the configured encoding. */static int64_t _intsetGet(intset *is, int pos) {    return _intsetGetEncoded(is,pos,intrev32ifbe(is->encoding));}/* Return the value at pos, given an encoding. */static int64_t _intsetGetEncoded(intset *is, int pos, uint8_t enc) {    int64_t v64;    int32_t v32;    int16_t v16;
    if (enc == INTSET_ENC_INT64) {        memcpy(&v64,((int64_t*)is->contents)+pos,sizeof(v64));        memrev64ifbe(&v64);        return v64;    } else if (enc == INTSET_ENC_INT32) {        memcpy(&v32,((int32_t*)is->contents)+pos,sizeof(v32));        memrev32ifbe(&v32);        return v32;    } else {        memcpy(&v16,((int16_t*)is->contents)+pos,sizeof(v16));        memrev16ifbe(&v16);        return v16;    }}// （附帶）case2: dict的迭代// dict.c, dict的迭代，存疑問dictEntry *dictNext(dictIterator *iter){    // 一直迭代查找    while (1) {        // iter->entry 為NULL, 有兩種可能: 1. 初始化時; 2. 上一元素為迭代完成(hash沖突)        if (iter->entry == NULL) {            dictht *ht = &iter->d->ht[iter->table];            if (iter->index == -1 && iter->table == 0) {                if (iter->safe)                    iter->d->iterators++;                else                    iter->fingerprint = dictFingerprint(iter->d);            }            // 直接使用下標進行迭代，如果中間有空閑位置該如何處理？？            // 看起來redis是使用了全量迭代元素的處理辦法，即有可能有許多空迭代過程            // 一般地，也是進行兩層迭代，jdk的hashmap迭代實現為直接找到下一次非空的元素為止            iter->index++;            // 直到迭代完成所有元素，否則會直到找到一個元素為止            if (iter->index >= (long) ht->size) {                if (dictIsRehashing(iter->d) && iter->table == 0) {                    iter->table++;                    iter->index = 0;                    ht = &iter->d->ht[1];                } else {                    break;                }            }            iter->entry = ht->table[iter->index];        } else {            // entry不為空,就一定有nextEntry？？            iter->entry = iter->nextEntry;        }        // 如果當前entry為空，則繼續迭代下一個 index        if (iter->entry) {            /* We need to save the 'next' here, the iterator user             * may delete the entry we are returning. */            iter->nextEntry = iter->entry->next;            return iter->entry;        }    }    return NULL;}

// 用法: SISMEMBER key member // t_set.c,     void sismemberCommand(client *c) {    robj *set;
    if ((set = lookupKeyReadOrReply(c,c->argv[1],shared.czero)) == NULL ||        checkType(c,set,OBJ_SET)) return;    // 主要方法 setTypeIsMember    if (setTypeIsMember(set,c->argv[2]->ptr))        // 回復1        addReply(c,shared.cone);    else        // 回復0        addReply(c,shared.czero);}// t_set.cint setTypeIsMember(robj *subject, sds value) {    long long llval;    if (subject->encoding == OBJ_ENCODING_HT) {        // hash 表的查找方式，hashCode 計算，鏈表查找，就這么簡單        return dictFind((dict*)subject->ptr,value) != NULL;    } else if (subject->encoding == OBJ_ENCODING_INTSET) {        // 如果當前的set集合是 intset 編碼的，則只有查找值也是整型的情況下才可能查找到元素        if (isSdsRepresentableAsLongLong(value,&llval) == C_OK) {            // intset 查找，而且 intset 是有序的，所以直接使用二分查找即可             return intsetFind((intset*)subject->ptr,llval);        }    } else {        serverPanic("Unknown set encoding");    }    return 0;}
/* Determine whether a value belongs to this set */uint8_t intsetFind(intset *is, int64_t value) {    uint8_t valenc = _intsetValueEncoding(value);    // 最大范圍檢查，加二分查找      // intsetSearch 前面已介紹    return valenc <= intrev32ifbe(is->encoding) && intsetSearch(is,value,NULL);}

// 用法: SINTER key1 [key2]// t_set.c, sinter 實現void sinterCommand(client *c) {    // 第三個參數是用來存儲 交集結果的，兩段代碼已做復用，說明存儲過程還是比較簡單的    sinterGenericCommand(c,c->argv+1,c->argc-1,NULL);}// t_set.c, 求n個key的集合交集void sinterGenericCommand(client *c, robj **setkeys,                          unsigned long setnum, robj *dstkey) {    robj **sets = zmalloc(sizeof(robj*)*setnum);    setTypeIterator *si;    robj *dstset = NULL;    sds elesds;    int64_t intobj;    void *replylen = NULL;    unsigned long j, cardinality = 0;    int encoding;
    for (j = 0; j < setnum; j++) {        // 依次查找每個key的set實例        robj *setobj = dstkey ?            lookupKeyWrite(c->db,setkeys[j]) :            lookupKeyRead(c->db,setkeys[j]);        // 只要有一個set為空，則交集必定為為，無需再找        if (!setobj) {            zfree(sets);            if (dstkey) {                // 沒有交集，直接將dstKey 刪除，注意此邏輯？？                if (dbDelete(c->db,dstkey)) {                    signalModifiedKey(c->db,dstkey);                    server.dirty++;                }                addReply(c,shared.czero);            } else {                addReply(c,shared.emptymultibulk);            }            return;        }        if (checkType(c,setobj,OBJ_SET)) {            zfree(sets);            return;        }        sets[j] = setobj;    }    /* Sort sets from the smallest to largest, this will improve our     * algorithm's performance */    // 快速排序算法，將 sets 按照元素長度做排序，使最少元素的set排在最前面    qsort(sets,setnum,sizeof(robj*),qsortCompareSetsByCardinality);
    /* The first thing we should output is the total number of elements...     * since this is a multi-bulk write, but at this stage we don't know     * the intersection set size, so we use a trick, append an empty object     * to the output list and save the pointer to later modify it with the     * right length */    if (!dstkey) {        replylen = addDeferredMultiBulkLength(c);    } else {        /* If we have a target key where to store the resulting set         * create this key with an empty set inside */        dstset = createIntsetObject();    }
    /* Iterate all the elements of the first (smallest) set, and test     * the element against all the other sets, if at least one set does     * not include the element it is discarded */    // 看來redis也是直接通過迭代的方式來完成交集功能    // 迭代最少的set集合，依次查找后續的set集合，當遇到一個不存在的set時，上值被排除，否則是交集    si = setTypeInitIterator(sets[0]);    while((encoding = setTypeNext(si,&elesds,&intobj)) != -1) {        for (j = 1; j < setnum; j++) {            if (sets[j] == sets[0]) continue;            // 以下是查找過程            // 分 hash表查找 和 intset 編碼查找            if (encoding == OBJ_ENCODING_INTSET) {                /* intset with intset is simple... and fast */                // 兩個集合都是 intset 編碼，直接二分查找即可                if (sets[j]->encoding == OBJ_ENCODING_INTSET &&                    !intsetFind((intset*)sets[j]->ptr,intobj))                {                    break;                /* in order to compare an integer with an object we                 * have to use the generic function, creating an object                 * for this */                } else if (sets[j]->encoding == OBJ_ENCODING_HT) {                    // 編碼不一致，但元素可能相同                    // setTypeIsMember 復用前面的代碼，直接查找即可                    elesds = sdsfromlonglong(intobj);                    if (!setTypeIsMember(sets[j],elesds)) {                        sdsfree(elesds);                        break;                    }                    sdsfree(elesds);                }            } else if (encoding == OBJ_ENCODING_HT) {                if (!setTypeIsMember(sets[j],elesds)) {                    break;                }            }        }
        /* Only take action when all sets contain the member */        // 當?shù)晁屑希f明每個set中都存在該值，是交集（注意分析最后一個迭代）        if (j == setnum) {            // 不存儲交集的情況下，直接響應元素值即可            if (!dstkey) {                if (encoding == OBJ_ENCODING_HT)                    addReplyBulkCBuffer(c,elesds,sdslen(elesds));                else                    addReplyBulkLongLong(c,intobj);                cardinality++;            }             // 要存儲交集數據，將值存儲到 dstset 中            else {                if (encoding == OBJ_ENCODING_INTSET) {                    elesds = sdsfromlonglong(intobj);                    setTypeAdd(dstset,elesds);                    sdsfree(elesds);                } else {                    setTypeAdd(dstset,elesds);                }            }        }    }    setTypeReleaseIterator(si);
    if (dstkey) {        /* Store the resulting set into the target, if the intersection         * is not an empty set. */        // 存儲集合之前會先把原來的數據刪除，如果進行多次交集運算，dstKey 就相當于臨時表咯        int deleted = dbDelete(c->db,dstkey);        if (setTypeSize(dstset) > 0) {            dbAdd(c->db,dstkey,dstset);            addReplyLongLong(c,setTypeSize(dstset));            notifyKeyspaceEvent(NOTIFY_SET,"sinterstore",                dstkey,c->db->id);        } else {            decrRefCount(dstset);            addReply(c,shared.czero);            if (deleted)                notifyKeyspaceEvent(NOTIFY_GENERIC,"del",                    dstkey,c->db->id);        }        signalModifiedKey(c->db,dstkey);        server.dirty++;    } else {        setDeferredMultiBulkLength(c,replylen,cardinality);    }    zfree(sets);}// compare 方法int qsortCompareSetsByCardinality(const void *s1, const void *s2) {    return setTypeSize(*(robj**)s1)-setTypeSize(*(robj**)s2);}// 快排樣例 sort.lua-- extracted from Programming Pearls, page 110function qsort(x,l,u,f) if l<u then  local m=math.random(u-(l-1))+l-1    -- choose a random pivot in range l..u  x[l],x[m]=x[m],x[l]            -- swap pivot to first position  local t=x[l]                -- pivot value  m=l  local i=l+1  while i<=u do    -- invariant: x[l+1..m] < t <= x[m+1..i-1]    if f(x[i],t) then      m=m+1      x[m],x[i]=x[i],x[m]        -- swap x[i] and x[m]    end    i=i+1  end  x[l],x[m]=x[m],x[l]            -- swap pivot to a valid place  -- x[l+1..m-1] < x[m] <= x[m+1..u]  qsort(x,l,m-1,f)  qsort(x,m+1,u,f) endend

// 用法: SDIFFSTORE destination key1 [key2]// t_set.cvoid sdiffstoreCommand(client *c) {    // 看起來sdiff 與 sunion 共用了一段代碼，為啥呢？    // 想想 sql 中的 full join     // c->argv[1] 是 dstKey    sunionDiffGenericCommand(c,c->argv+2,c->argc-2,c->argv[1],SET_OP_DIFF);}// t_set.c, 差集并集運算void sunionDiffGenericCommand(client *c, robj **setkeys, int setnum,                              robj *dstkey, int op) {    robj **sets = zmalloc(sizeof(robj*)*setnum);    setTypeIterator *si;    robj *dstset = NULL;    sds ele;    int j, cardinality = 0;    int diff_algo = 1;    // 同樣的套路，先查找各key的實例    // 不同的是，這里的key允許不存在，但不允許類型不一致    for (j = 0; j < setnum; j++) {        robj *setobj = dstkey ?            lookupKeyWrite(c->db,setkeys[j]) :            lookupKeyRead(c->db,setkeys[j]);        if (!setobj) {            sets[j] = NULL;            continue;        }        if (checkType(c,setobj,OBJ_SET)) {            zfree(sets);            return;        }        sets[j] = setobj;    }
    /* Select what DIFF algorithm to use.     *     * Algorithm 1 is O(N*M) where N is the size of the element first set     * and M the total number of sets.     *     * Algorithm 2 is O(N) where N is the total number of elements in all     * the sets.     *     * We compute what is the best bet with the current input here. */    // 針對差集運算，做算法優化    if (op == SET_OP_DIFF && sets[0]) {        long long algo_one_work = 0, algo_two_work = 0;
        for (j = 0; j < setnum; j++) {            if (sets[j] == NULL) continue;
            algo_one_work += setTypeSize(sets[0]);            algo_two_work += setTypeSize(sets[j]);        }
        /* Algorithm 1 has better constant times and performs less operations         * if there are elements in common. Give it some advantage. */        algo_one_work /= 2;        diff_algo = (algo_one_work <= algo_two_work) ? 1 : 2;        if (diff_algo == 1 && setnum > 1) {            /* With algorithm 1 it is better to order the sets to subtract             * by decreasing size, so that we are more likely to find             * duplicated elements ASAP. */            qsort(sets+1,setnum-1,sizeof(robj*),                qsortCompareSetsByRevCardinality);        }    }
    /* We need a temp set object to store our union. If the dstkey     * is not NULL (that is, we are inside an SUNIONSTORE operation) then     * this set object will be the resulting object to set into the target key*/    dstset = createIntsetObject();
    if (op == SET_OP_UNION) {        /* Union is trivial, just add every element of every set to the         * temporary set. */        for (j = 0; j < setnum; j++) {            if (!sets[j]) continue; /* non existing keys are like empty sets */            // 依次添加即可，對于 sunion 來說，有序是無意義的            si = setTypeInitIterator(sets[j]);            while((ele = setTypeNextObject(si)) != NULL) {                if (setTypeAdd(dstset,ele)) cardinality++;                sdsfree(ele);            }            setTypeReleaseIterator(si);        }    }     // 使用算法1, 依次迭代最大元素    else if (op == SET_OP_DIFF && sets[0] && diff_algo == 1) {        /* DIFF Algorithm 1:         *         * We perform the diff by iterating all the elements of the first set,         * and only adding it to the target set if the element does not exist         * into all the other sets.         *         * This way we perform at max N*M operations, where N is the size of         * the first set, and M the number of sets. */        si = setTypeInitIterator(sets[0]);        while((ele = setTypeNextObject(si)) != NULL) {            for (j = 1; j < setnum; j++) {                if (!sets[j]) continue; /* no key is an empty set. */                if (sets[j] == sets[0]) break; /* same set! */                // 只要有一個相同，就不算是差集？？                if (setTypeIsMember(sets[j],ele)) break;            }            // 這里的差集是所有set的值都不相同或者為空？？？尷尬了            if (j == setnum) {                /* There is no other set with this element. Add it. */                setTypeAdd(dstset,ele);                cardinality++;            }            sdsfree(ele);        }        setTypeReleaseIterator(si);    }     // 使用算法2，直接以第一個元素為基礎，后續set做remove，最后剩下的就是差集    else if (op == SET_OP_DIFF && sets[0] && diff_algo == 2) {        /* DIFF Algorithm 2:         *         * Add all the elements of the first set to the auxiliary set.         * Then remove all the elements of all the next sets from it.         *         * This is O(N) where N is the sum of all the elements in every         * set. */        for (j = 0; j < setnum; j++) {            if (!sets[j]) continue; /* non existing keys are like empty sets */
            si = setTypeInitIterator(sets[j]);            while((ele = setTypeNextObject(si)) != NULL) {                if (j == 0) {                    if (setTypeAdd(dstset,ele)) cardinality++;                } else {                    if (setTypeRemove(dstset,ele)) cardinality--;                }                sdsfree(ele);            }            setTypeReleaseIterator(si);
            /* Exit if result set is empty as any additional removal             * of elements will have no effect. */            if (cardinality == 0) break;        }    }
    /* Output the content of the resulting set, if not in STORE mode */    if (!dstkey) {        addReplyMultiBulkLen(c,cardinality);        si = setTypeInitIterator(dstset);        // 響應差集列表        while((ele = setTypeNextObject(si)) != NULL) {            addReplyBulkCBuffer(c,ele,sdslen(ele));            sdsfree(ele);        }        setTypeReleaseIterator(si);        decrRefCount(dstset);    } else {        /* If we have a target key where to store the resulting set         * create this key with the result set inside */        int deleted = dbDelete(c->db,dstkey);        if (setTypeSize(dstset) > 0) {            // 存儲差集列表，響應差集個數            dbAdd(c->db,dstkey,dstset);            addReplyLongLong(c,setTypeSize(dstset));            notifyKeyspaceEvent(NOTIFY_SET,                op == SET_OP_UNION ? "sunionstore" : "sdiffstore",                dstkey,c->db->id);        } else {            decrRefCount(dstset);            addReply(c,shared.czero);            if (deleted)                notifyKeyspaceEvent(NOTIFY_GENERIC,"del",                    dstkey,c->db->id);        }        signalModifiedKey(c->db,dstkey);        server.dirty++;    }    zfree(sets);}/* This is used by SDIFF and in this case we can receive NULL that should * be handled as empty sets. */int qsortCompareSetsByRevCardinality(const void *s1, const void *s2) {    robj *o1 = *(robj**)s1, *o2 = *(robj**)s2;
    return  (o2 ? setTypeSize(o2) : 0) - (o1 ? setTypeSize(o1) : 0);}

// 用法: SPOP key [count]// t_set.cvoid spopCommand(client *c) {    robj *set, *ele, *aux;    sds sdsele;    int64_t llele;    int encoding;
    if (c->argc == 3) {        // 彈出指定數量的元素，略        spopWithCountCommand(c);        return;    } else if (c->argc > 3) {        addReply(c,shared.syntaxerr);        return;    }
    /* Make sure a key with the name inputted exists, and that it's type is     * indeed a set */    if ((set = lookupKeyWriteOrReply(c,c->argv[1],shared.nullbulk)) == NULL ||        checkType(c,set,OBJ_SET)) return;
    /* Get a random element from the set */    // 1. 隨機獲取一個元素，這是 spop 的定義    encoding = setTypeRandomElement(set,&sdsele,&llele);
    /* Remove the element from the set */    // 2. 刪除元素    if (encoding == OBJ_ENCODING_INTSET) {        ele = createStringObjectFromLongLong(llele);        set->ptr = intsetRemove(set->ptr,llele,NULL);    } else {        ele = createStringObject(sdsele,sdslen(sdsele));        setTypeRemove(set,ele->ptr);    }
    notifyKeyspaceEvent(NOTIFY_SET,"spop",c->argv[1],c->db->id);
    /* Replicate/AOF this command as an SREM operation */    aux = createStringObject("SREM",4);    rewriteClientCommandVector(c,3,aux,c->argv[1],ele);    decrRefCount(aux);
    /* Add the element to the reply */    addReplyBulk(c,ele);    decrRefCount(ele);
    /* Delete the set if it's empty */    if (setTypeSize(set) == 0) {        dbDelete(c->db,c->argv[1]);        notifyKeyspaceEvent(NOTIFY_GENERIC,"del",c->argv[1],c->db->id);    }
    /* Set has been modified */    signalModifiedKey(c->db,c->argv[1]);    server.dirty++;}// 沒啥好說的，就看下是如何隨機的就好了// t_set.c, 隨機獲取一個元素，賦值給 sdsele|llele/* Return random element from a non empty set. * The returned element can be a int64_t value if the set is encoded * as an "intset" blob of integers, or an SDS string if the set * is a regular set. * * The caller provides both pointers to be populated with the right * object. The return value of the function is the object->encoding * field of the object and is used by the caller to check if the * int64_t pointer or the redis object pointer was populated. * * Note that both the sdsele and llele pointers should be passed and cannot * be NULL since the function will try to defensively populate the non * used field with values which are easy to trap if misused. */int setTypeRandomElement(robj *setobj, sds *sdsele, int64_t *llele) {    if (setobj->encoding == OBJ_ENCODING_HT) {        // 1.1. dict 型的隨機        dictEntry *de = dictGetRandomKey(setobj->ptr);        *sdsele = dictGetKey(de);        *llele = -123456789; /* Not needed. Defensive. */    } else if (setobj->encoding == OBJ_ENCODING_INTSET) {        // 1.2. intset 型的隨機        *llele = intsetRandom(setobj->ptr);        *sdsele = NULL; /* Not needed. Defensive. */    } else {        serverPanic("Unknown set encoding");    }    return setobj->encoding;}// 1.1. dict 型的隨機/* Return a random entry from the hash table. Useful to * implement randomized algorithms */dictEntry *dictGetRandomKey(dict *d){    dictEntry *he, *orighe;    unsigned int h;    int listlen, listele;
    if (dictSize(d) == 0) return NULL;    if (dictIsRehashing(d)) _dictRehashStep(d);    // 基本原理就是一直接隨機獲取下標，直到有值    if (dictIsRehashing(d)) {        do {            /* We are sure there are no elements in indexes from 0             * to rehashidx-1 */            // 獲取隨機下標，須保證在 兩個hash表的范圍內            h = d->rehashidx + (random() % (d->ht[0].size +                                            d->ht[1].size -                                            d->rehashidx));            he = (h >= d->ht[0].size) ? d->ht[1].table[h - d->ht[0].size] :                                      d->ht[0].table[h];        } while(he == NULL);    } else {        do {            h = random() & d->ht[0].sizemask;            he = d->ht[0].table[h];        } while(he == NULL);    }
    /* Now we found a non empty bucket, but it is a linked     * list and we need to get a random element from the list.     * The only sane way to do so is counting the elements and     * select a random index. */    listlen = 0;    orighe = he;    // 對于hash沖突情況，再隨機一次    while(he) {        he = he->next;        listlen++;    }    listele = random() % listlen;    he = orighe;    while(listele--) he = he->next;    return he;}
// 1.2. intset 型的隨機// intset.c/* Return random member */int64_t intsetRandom(intset *is) {    // 這個隨機就簡單了，直接獲取隨機下標，因?yàn)閕ntset可以保證自身元素的完整性    return _intsetGet(is,rand()%intrev32ifbe(is->length));}
